Clone mode
Run cloned deployment in same cluster, and cooperate with the service mesh to intercept the traffic with the specified header or all the traffic to the clone deployment.
➜ ~ kubevpn clone deployment/authors -c authors --headers foo=bar --sync ~/GolandProjects/bookinfo-authors:/app/code
Starting connect
Got network CIDR from cache
Use exist traffic manager
Forwarding port...
Forwarding from 127.0.0.1:51744 -> 10800
Forwarding from [::1]:51744 -> 10800
Forwarding from 127.0.0.1:51745 -> 10801
Forwarding from [::1]:51745 -> 10801
Forwarding from 127.0.0.1:51746 -> 10802
Forwarding from [::1]:51746 -> 10802
Connected tunnel
Handling connection for 51744
Adding route...
Configuring DNS service...
Configured DNS service
Clone workloads...
Clone workload deployment/authors
Defaulted container "authors" out of: nginx, authors
Create clone resource Deployment.apps/authors-clone-108ce in target cluster
Wait for clone resource Deployment.apps/authors-clone-108ce to be ready
Pod authors-clone-108ce-6fc847b4c9-zjxlm is Pending...
Container Reason Message
Pod authors-clone-108ce-6fc847b4c9-zjxlm is Pending...
Type Reason Message
Pod authors-clone-108ce-6fc847b4c9-zjxlm is Pending...
Container Reason Message
authors ContainerCreating
nginx ContainerCreating
syncthing ContainerCreating
vpn ContainerCreating
Pod authors-clone-108ce-6fc847b4c9-zjxlm is Running...
Container Reason Message
authors ContainerRunning
nginx ContainerRunning
syncthing ContainerRunning
vpn ContainerRunning
Checking rollout status for deployment/authors
Waiting for deployment "authors" rollout to finish: 1 old replicas are pending termination...
Waiting for deployment "authors" rollout to finish: 1 old replicas are pending termination...
Rollout successfully for deployment/authors
Access the syncthing GUI via the following URL: http://127.0.0.1:51766
+----------------------------------------------------------+
| Now you can access resources in the kubernetes cluster ! |
+----------------------------------------------------------+%
➜ ~
Use kubevpn status to display status
➜ ~ kubevpn status
ID Mode Cluster Kubeconfig Namespace Status Netif
0 full ccdpol3fqtofinnpvv720 /Users/naison/.kube/vke default Connected utun6
ID Name Headers IP PortMap CurrentPC
0 deployments.apps/authors foo=bar 198.19.0.107 9080->9080,80->80 false
ID Name Headers ToName ToKubeconfig ToNamespace SyncthingGUI
0 deployment/authors foo=bar authors-clone-108ce /Users/naison/.kube/vke default http://127.0.0.1:51766
➜ ~

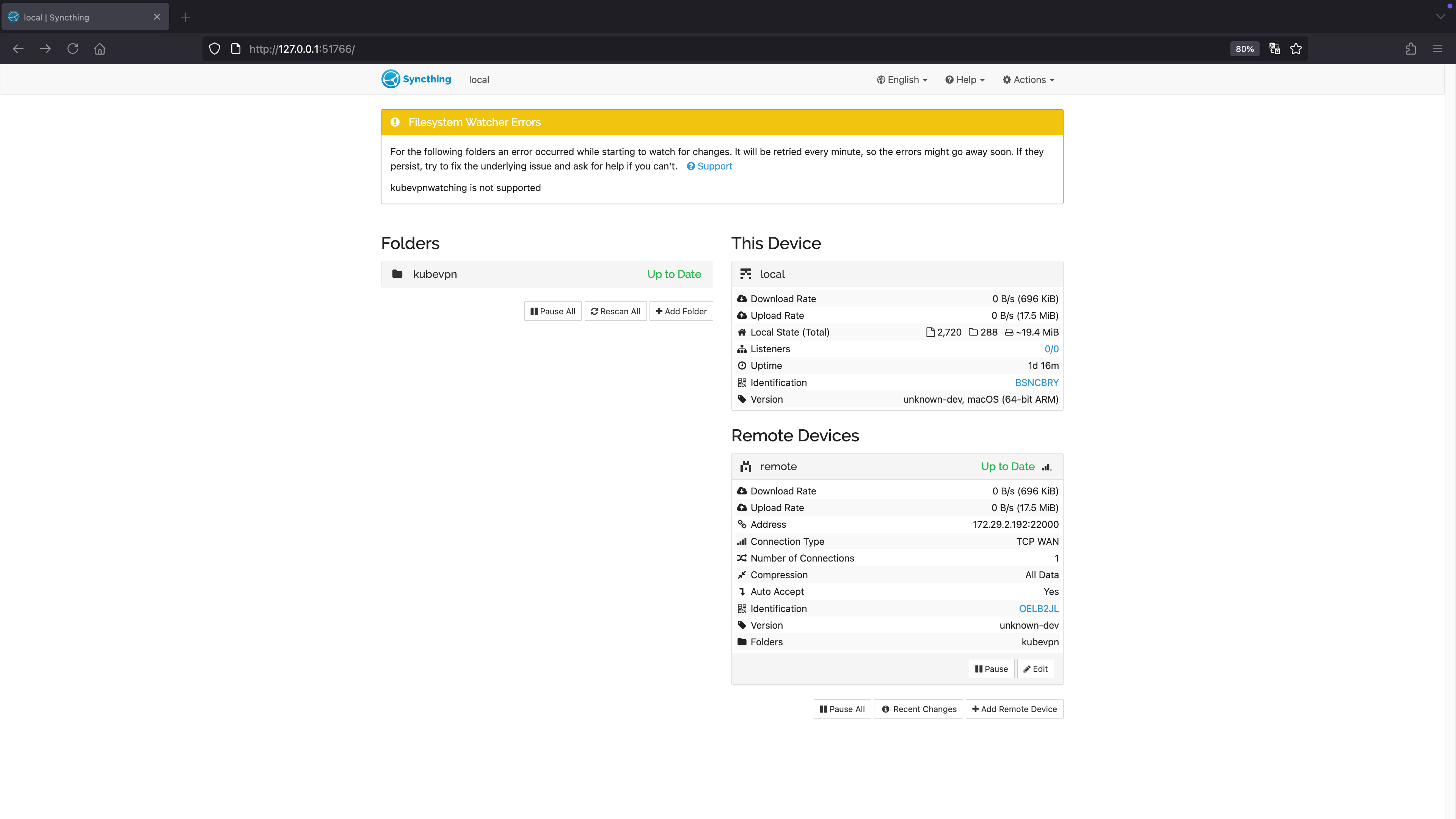

You can use browser to open SyncthingGUI address http://127.0.0.1:51766
- After synchronize process finished, all local code synced to k8s
deployment/authors-clone-108ce - You can start up application in this pod manually
- All traffic with header
foo=barwill hitdeployment/authors-clone-108ce, other traffic will hit origindeployment/authors
